Nothing But The Call
production notes

                                    Monday, January 15, 2007 (10:48AM)
+   Prep for recording.
    *   Target method: M/S Stereo technique
        -   Yesterday I bought a BlueTube DP preamp so that I can
            flip the phase of the side mic channel. I am going to get a
            2nd mic (Behringer B2 Pro, backordered).
    *   Pick a tempo: 152 BPM--pretty quick.
    *   did a couple trial runs. Record at 24 bit, 96 kHz. This is
        going to be near-field, acoustic work with little effects
        (mild EQ, mild reverb, not even delay), so it needs to be
        quality.
        -   Need to practice
        -   render trial_two.mp3. Can't play the rendered WAV file due
            to the bit depth and sample rate. Time to get audacity
            (which has been recommended to me on the PowerTracks user
            forum two or three times now):
                http://audacity.sourceforge.net/download/windows
            follow instructions for Lame MP3 encoder:
                http://audacity.sourceforge.net/help/faq?s=install&item=lame-mp3
            Nice program! Why didn't I do this before? OK, now I can
            get to a playable wav file:
            :   Export a WAV file from PowerTracks
            :   load into audacity.
            :   change project sample rate to 44.1 kHz (16 bits is set
                as export bit depth in preferences)
            :   export to wav file and/or mp3 (selection only works).
        -   Need to make sure the click track ends by the last note,
            or I can hear it in the mic.
        -   trial three. much better. Audacity is very nice for
            prepping the final WAV and MP3 files.
            :   Curious--if I overwrite the original wave file, does
                the audacity project update? Yes! That means I can
                change the mix, generate the WAVE file, and just hit
                "export" in audacity to get the final product with
                audacity editing (fades, trims, etc...).

                                    Saturday, January 20, 2007 (2:15PM)
    *   Got the second Behringer B2 Pro mic. Try various stereo-miking
        configurations.
        -   I will take a tip from both Phil Keaggy and Chris Proctor:
            supplement the bass with a pickup.
            :   This requires recording to three tracks. Simple: select

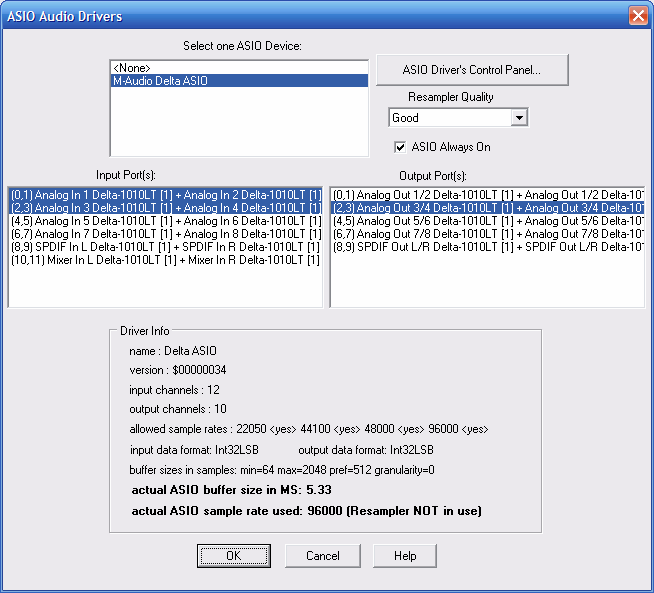

                two audio inputs in the audio drivers dialog (see
                audio_drivers_a). Then set the input channel to

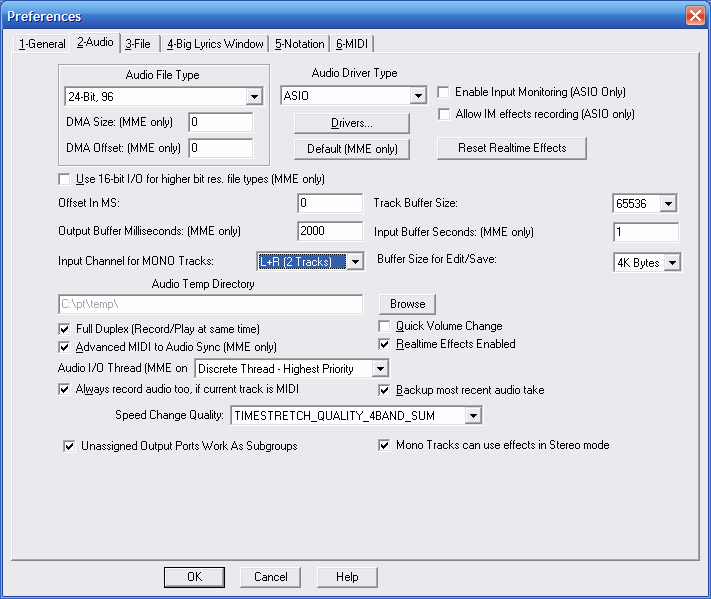

                "L+R (2 tracks)" (see audio_prefs_a). This causes PT11
                to record on the current track, and the following three
                tracks (the fourth is junk).
            :   Record flat, though I will low-pass filter at mixdown.
                Do not monitor--only monitor of the mic pair.
            :   Route the mics through the (balanced) main bus. Route
                the pickup through the subgroup. Fortunately, I have
                the connectors. Not worried about super audio quality
                on the pickup since it will lose the highs in the mix.
            :   Oops, I need to monitor off the subgroup so I can hear
                the click. Record via aux 1.
        -   After a bit of googling, the one I see the most has the
            two mics separated; one aims at the 12th fret, the other
            aims at the bridge, both from 6 to 12 inches away. So
            the mics are separated by 24 inches. Cardioid. Panned
            hard left and right.
            :   Find the sweet spot via trial and error: move side to
                side until the bass is panned center.
            :   Save as nothing_but_the_call_sep_pair.seq.
        -   M/S Stereo.
            :   Tuning the side: pan both channels center. Move faders
                until silence. Then restore hard pan.
            :   Save as nothing_but_the_call_ms_mic.seq.
        -   Render both takes.
            :   Problem: wav file is trash. Import in both audacity
                and PowerTracks. Trash in both. Try rendering MP3
                directly. No luck. Reboot. No luck. That is odd since
                I have rendered this file successfully before.
                >   remove effects one at a time. no luck
                >   convert to 44.1k/24 bit. No luck.
                >   Convert to 96k/16 bit.  IT WORKS!
                >   I notice that 24-bit files are reported in
                    audacity as "32-bit float". But so is the 16-bit
                    file.
            :   Save the two:
                    A:  nothing_but_the_call_a.mp3  Sep Pair
                    B:  nothing_but_the_call_b.mp3  M/S Stereo
        -   Slam these two out on the web and get some feedback.
                                    Sunday, January 21, 2007 (9:35AM)

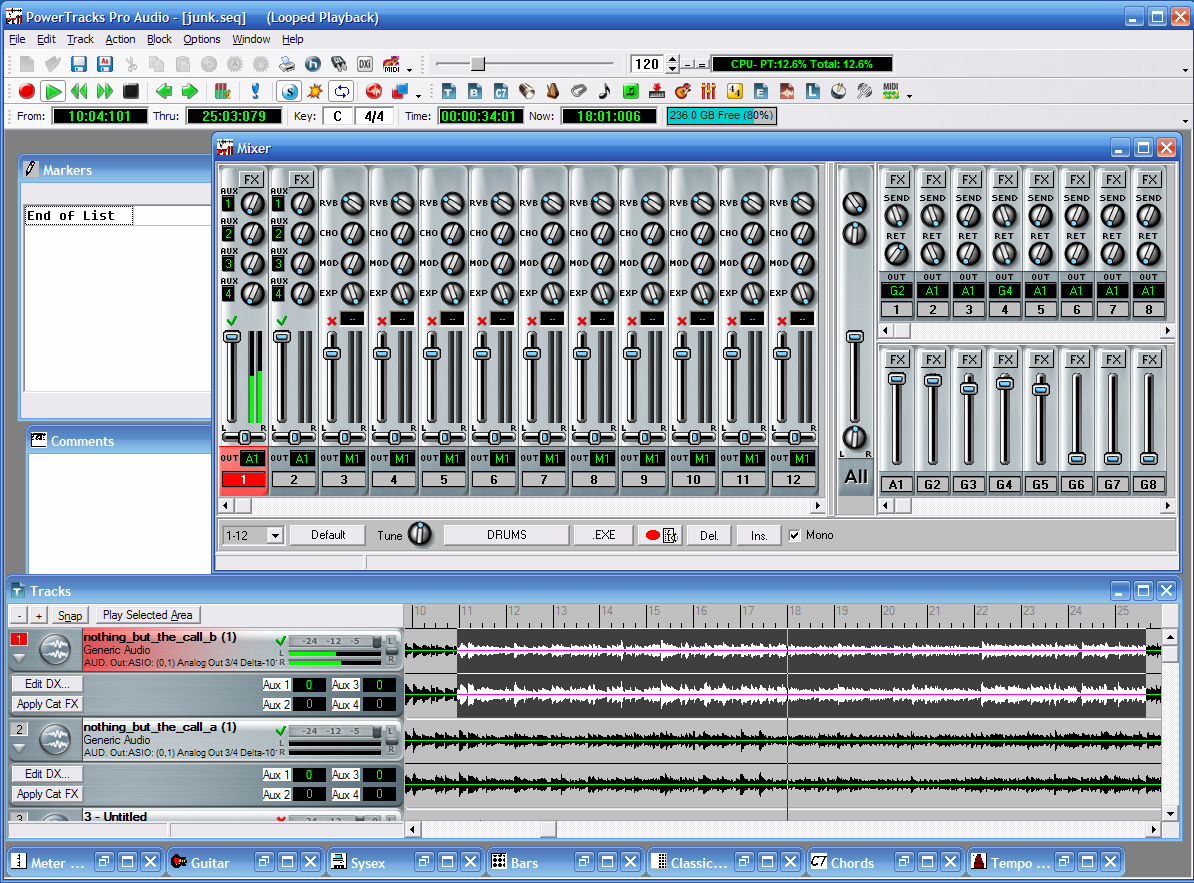

        -   I found the perfect interface for comparing the results.
            See compare_st_mics_a. Import both final results into a
            new PT session. Highlight a section, use solo mode and
            looping. Switch between the two by selecting the
            desired track. Try the mono button.
            :   B sounds much better in mono...consistently.
            :   A sometimes gives a slightly more interesting stereo
                field. But they both have a very marked field when
                compared with mono.
            :   B has better bass...consistently.
            :   B might have better upper mids and highs in the
                upper-fret section.
            :   B has a fuller sound for the Am run and strum.
                B does all the strums better.
            :   B seems to do the low metzo-piano run better with
                deeper, tighter bass.
            :   A has more interesting mids on the C-G/B-A2 sequence.
            :   A has more interesting transients on the main Em
                sequence.
            :   B does all the bass and strums better. This makes a
                more pleasing dynamic range and is a powerful argument
                for it. However, A's more interesting stereo field
                makes it a difficult decision. I am not sure that I
                really care about the mono response. Wait for some votes
                to come in from those that don't know which is the
                Mid/Side and which is the separated pair. Put a poll
                on the PowerTracks User Forum.
                1/21/2007, 8:47 PM. A=2, B=0
            :   Tim Churchill wrote: "I'm not sure why, but I think I
                prefer the "B" track. It may be the way it was recorded,
                proximity to the mic, etc., but the guitar sounds more
                real to me. It seems to pick up the true tones,
                harmonics, and clarity you would hear in person. It's
                just my take on the two different recordings."
                                    Tuesday, January 30, 2007 (7:27AM)
            :   The poll is split 9 to 9 with the heavy hitters
                favoring B (M/S). But I am thinking I prefer the
                separated pair with some rework to improve bass
                response.

+   Woke up at 4AM. Couldn't sleep. Composed a bridge.
    "I will awaken the dawn"...again.
    The feeling has been growing on me that the song needs something to
    break the two repeated phrases (the song has been of form ABCABC).
    At the Gm (frets 8-10), the addition goes up rather taking the
    cascading downward direction and ends on A9/C#. Then I do a cute
    gimmick on the 3rd and 5th strings winding down to a Bbmaj7-#4 where
    I let the note hang before resuming on the Am7 run up the 2nd and
    4th strings.

                                    Saturday, February 3, 2007 (12:44PM)
+   As I approach recording, one concern is the noise level. I just
    used the SLM, dBA. Check some A-weighted levels:
                furnace & PC off:   30.6
                furnace only:       32.4
                furnace + PC:       35.5
                guitar low:         75.0
                guitar high:        87.0
    -   The SLM (Check Mate CM-150) lowest range is 30db.
    -   Most of the residual noise comes from the PC fan. The furnace
        and PC fan are broadband and not objectionable. This gives me a
        minimum signal-to-noise ratio of 50db. The big problems come
        from cars driving by and the boys playing. Record late at night.
    -   While doing this I leaned the 414 against my desk chair
        (instead of the three guitar stands in the room). While I
        turned my back to take a reading, the chair rotated and dropped
        the tip of the headstock on the metal tube leg of the utility
        table putting my first REAL ding in the guitar. OK...I bought
        it to use it. Sorry, Jesus, about my initial response. Your
        will be done, not mine.


                                    Tuesday, February 6, 2007 (8:25AM)
+   Record. The time has come. I have practiced A LOT with the
    metronome above and below 152. It is snowing outside, and the house
    is quiet. Fingers are in great shape. The 414 has new strings, and
    I adjusted the action (Low E = 5.5 64ths, High E = 4.5 64ths).
    *   Begin a new SEQ file. Perhaps it will write the 24-bit
        wav file.
    *   Tried dropping the right mic, thinking it would pick up
        better treble, but the bass suffers. Raise it back to the
        same level as the left mic.
    *   Setup took about an hour. It's also taking a while for me
        to relax in front of the mics. Second attempt went decent,
        but my finger missed the high G and I breathed during the
        pause. 10:25 AM
    *   Oops, forgot to tune.
    *   11:58 AM I think take three is a winner. I goofed the bridge
        lick. Rather than try a punch-in, I just recorded that sequence
        at the end and pasted it into its spot (easy since it is
        flanked by silence on both ends).
    *   Nope, can't write a 24-bit wav file.

                                    Friday, February 9, 2007 (4:23PM)
+   Mix.
    *   Trial mix was a bit bass heavy. Perhaps too much of the
        expression system.
    *   Trim some of the pause in the bridge end.
    *   Add slight EQ to mics. dip at 250Hz.
    *   Final editing in Audacity.
        -   Trim. Fade in and fade out.
        -   Convert to 44.1kHz.
    *   render nothing_but_the_call_mix_a.wav
        and nothing_but_the_call_mix_a.mp3
                                Tuesday, February 20, 2007 (5:58PM)
    *   Still too bass heavy. One of the forum guys mentioned it, and
        I notice it in the car. Most evident on PC speakers (with
        subwoofer). Rely on PC speakers and Fostex T40 headphones.
        Drop pickup fader from 100 to 79--about 4 db. Render
        nothing_but_the_call_mix_b.wav & nothing_but_the_call_mix_b.mp3
        4db?!? How did I miss that? It still sounds slightly bassy in
        the car, but great otherwise.


total production hours to date: 15.0
                                    Friday, October 26, 2007 (6:00PM)
    *   I can't believe I left that dead note in there! Time to fix it.
        Just grab the next instance of it.
        -   The trick is selecting the portion of the following
            three notes that is just long enough to overwrite these
            three without a gap that would be an audible glitch.
            I zoomed in on the six-note sequence and used the markers
            window to measure the lengths. Then I used the cursor
            hot keys to set the markers.
        -   Oops, can't write 24/96 output. Convert to 16/44--for good!
        -   Render nothing_but_the_call_mix_c.wav and
            nothing_but_the_call_mix_c.mp3. Use 192kbps for the MP3
            resolution--this was, after all, my little episode of
            audiophilitus.
